Welcome to the Solar System Seismonauts repository, a project developed for the NASA Space Apps Challenge 2024.
The challenge is to write a computer program to analyze real data from the Apollo missions and the Mars Interior Exploration using Seismic Investigations, Geodesy and Heat Transport (InSight) Lander to identify seismic events! The Example Resources section provides a data packet with continuous seismic records from these missions arranged in training and test subsets, catalogs showing when the known seismic records occur in the training data, and a Python Jupyter Notebook with helpful codes to help you get started. Your team can look at these records to understand the qualities of planetary seismic data, and then try your hand at finding all the seismic events in the test dataset. Maybe you’ll find some additional events not in the current catalogs!
More info here
By studying seismic waves and how fast they travel, we can probe the structure and composition of the Earth and other planets as well, which is crucial for establishing habitability parameters of exoplanets. However, there's just one hiccup: sending data back over long distances in space requires a lot of power. To address this challenge, our team has implemented the following solution:
We used a two-phase ensemble model. First, we applied the STA/LTA algorithm, a state-of-the-art method for seismic detection. We optimized a grid of hyperparameters (windows and triggers) to minimize the mean absolute error (real relative time - predicted relative time) over a training set of 10 files, which outputs different candidate windows for seismic events.
In the (majority) case where the algorithm generated multiple candidate windows for a seism, the predicted window was selected as the one with the highest density of anomalies detected by the Isolation Forest algorithm.
This approach resulted in remarkable outcomes on a training set of 50 files, with a mean absolute error of less than 180 seconds in almost 40 out of 50 training files.
Sonification is the representation of data sets through sound to facilitate their communication and interpretation. We implemented this concept in the challenge because, not only does it provide a solution to the problem, but it also brings this type of project closer to the public by allowing them to appreciate the data through both music and visualizations, as we have done. This makes the data more accessible.
Additionally, sonification is already used in science to assist blind scientists, among other applications. Here's how we implemented it: With the data received from the final algorithm, we filter the time range where the seismic event occurs.
- We fragment the signal into several parts.
- We assign a frequency to the velocity (m/s) in each fragment.
- We merge all the frequencies into a
.wavfile. - We create an animated graph using data from the CSV file (average and median samples).
- We add the audio track from step 3 to the video file from step 4.
- Seismic wave analysis: Probing the structure and composition of Earth and other planets.
- Energy challenge in space: Addressing the issue of high energy consumption for long-distance data transmission in space.
- Two-phase ensemble model: Combining the STA/LTA algorithm for seismic detection with an Isolation Forest for anomaly detection.
- High accuracy results: Achieving a mean absolute error of less than 180 seconds in almost 40 out of the 50 training files.
- Sonification: Converting data into sound for easier interpretation and communication, making seismic data more accessible to the public.
- Data visualization: Creating an animated graph and merging the audio with video to visualize and present the data effectively.
-
notebooks: Jupyter Notebook files containing the algorithms used in the project. Here is the final version of the notebook.
-
outputs: Results from the applied algorithms, including multimedia representations organized into different subfolders (videos, GIFs, audios, etc.).
- The submitted predictions file is
predictions.csv(also available in Excel format with the same data).
- The submitted predictions file is
-
scripts/display: Script to generate multimedia content based on the algorithm's output.
To run this project locally, make sure you have the following requirements installed:
- Python 3.10.12 for Algorithm Development.
- ffmpeg
- Necessary libraries for Algorithm Development part (can be installed using
pip):pip install obspy==1.4.1 numpy==1.26.4 pandas==2.2.2 matplotlib==3.7.1 scikit-learn==1.5.2 tqdm==4.66.5 scipy==1.13.1
Clone this repository:
git clone https://github.com/mgarciate/SolarSystemSeismonauts_NASASpaceApps2024.gitOpen the notebook at:
cd SolarSystemSeismonauts_NASASpaceApps2024/notebooksOr generate multimedia at:
cd SolarSystemSeismonauts_NASASpaceApps2024/scripts/display- Obtaining windows via STA/LTA
- Obtaining anomaly coefficients using isolation forest
- Combining the signal and the anomalies detected in the isolation forest
- Obtaining the predicted window
Install additional libraries
pip install -r requirements_sonification.txtRun the main script
python3 main.pyWe have automatically generated multimedia content for 50 seismic events detected and analyzed by the algorithm described above, using the following approach:
- We fragment the signal into several parts.
- We assign a frequency to the velocity (m/s) in each fragment.
- We merge all the frequencies into a
.wavfile.
for note in melody_array: # From 0 to n notes
frequency = notes_frequencies[notes_frequencies_keys[note]]
t = np.linspace(0, duration, int(sample_rate * duration), False)
note_signal = 0.5 * np.sin(2 * np.pi * frequency * t)
fade_in_len = int(sample_rate * fade_duration)
fade_out_len = int(sample_rate * fade_duration)
fade_in = np.linspace(0, 1, fade_in_len)
fade_out = np.linspace(1, 0, fade_out_len)
note_signal[:fade_in_len] *= fade_in
note_signal[-fade_out_len:] *= fade_out
melody_signal = np.concatenate((melody_signal, note_signal))
melody_notes = np.append(melody_notes, notes_frequencies_keys[note])
melody_file = f'../../outputs/melodies/{test_filename}.txt'
np.savetxt(melody_file, melody_notes, fmt='%s', delimiter=',')- We create an animated graph using data from the CSV file (average and median samples).
fig, ax = plt.subplots(figsize=(9, 6)) # Create the plot figure
camera = Camera(fig) # Initialize camera for animation
# Loop to animate step-by-step
# Loop to animate step-by-step
for j in range(1, len(mean_values) + 1): # Loop through all data points
plt.ylim(0, max(np.max(mean_values), np.max(median_values))) # Set y-axis limits based on the provided data
plt.xlim(0, len(mean_values)) # Set x-axis limits to fit the data points
# Plot the partial A and B data up to the current step j
sns.lineplot(x=range(j), y=mean_values[:j], color='red', label='Mean values')
sns.lineplot(x=range(j), y=median_values[:j], color='blue', label='Median values')
plt.legend((
'Real Mean: {:.2e}'.format(sum(mean_values[:j]) / j),
'Real Median: {:.2e}'.format(sum(median_values[:j]) / j),
))
# Add a dynamic title showing the current step

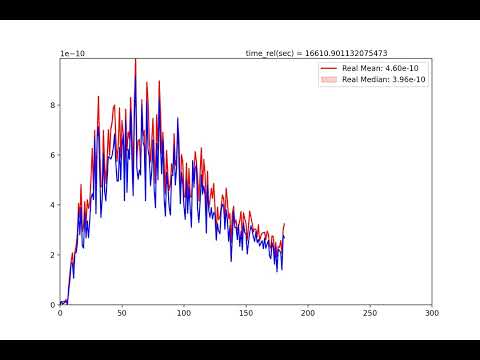

ax.text(0.5, 1.01, f"time_rel(sec) = {time_intervals[j]}", transform=ax.transAxes)
camera.snap() # Take a snapshot for the animation
# Create the animation from the snapshots
anim = camera.animate()
# Save the animation as an MP4 file
mp4_file = f'{test_filename}.mp4'
anim.save(mp4_file, writer='ffmpeg', fps=30)- We add the audio track from step 3 to the video file from step 4.
output_file = f'../../outputs/videos/{test_filename}.mp4'
subprocess.run([
'ffmpeg',
'-i', mp4_file, # Input video file
'-i', f'{wav_file}', # Input audio file
'-c:v', 'copy', # Copy the video codec (no re-encoding)
'-c:a', 'aac', # Use AAC codec for audio
'-strict', 'experimental', # Allow experimental aac
output_file, # Output video file with sound
'-y' # Overwrite output file if it exists
])Navigate to outputs:
- plots
- audio files
Check wav files at audios
- gifs
- videos
Check more mp4 files at videos
- melodies
C3,G3,E4,B4,E5,G5,F5,F5,A5,G5,G5,C5,D5,B4,B4,B4,F4,F4,E4,D4,D4,C4,B3,A3,B3,A3,A3,A3,G3,G3,A3,G3,G3,F3,F3,C3,E3,G3,G3,G3
- Python
- Jupyter Notebook
- Google Codelabs
- ffmpeg
Demo Notebook provided in the challenge
This project is licensed under the terms of the MIT license.
Thank you for exploring the solar system with us! 🌍🚀
